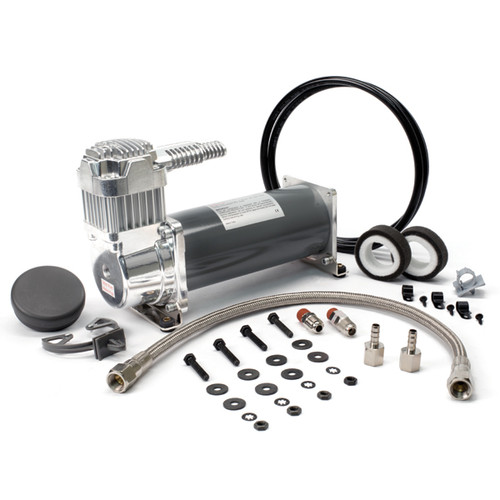

Product Overview
Industrial Grade (IG) compressors from Viair are specifically designed to fill air reservoir tanks and feature a head assembly that includes a newly-developed, patents pending innovative head design for better heat dissipation. All IG compressors are certified CE spec. and feature outstanding sealing properties to the elements. Additionally, all IG compressors are equipped with a separate stainless steel braided PTFE-lined leader hoses and check valve assembly that protects the compressor against high amperage restarts.
THIS IS A 24-VOLT DC MODEL. A 12-VOLT DC MODEL ALSO AVAILABLE.
#INDUSTRIAL #FARMING #TOWING #COMMERCIAL-FLEET
| FEATURES |
|---|
| – Thermal Overload Protector |
| – Vibration Isolators |
| – Mounting Hardware |
| – Heavy Duty 1/4″ NPT Check Valve |
| – Stainless Steel Braided PTFE-Lined Leader Hose |
| – Air Line for Remote Mount Air Filter |
| – Remote Mount Air Filter Assembly |
| – (2) Replacement Air Filter Elements |
| – Installation Instructions |
| SPECIFICATIONS |
|---|
| – 12-Volt / 24-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI |
| – Max. Working Pressure: 150 PSI |
| – Max. Air Tank Size: 5.0 Gallon |
| – Max. 12V Amp Draw: 23 Amps |
| – Max. 24V Amp Draw: 13 Amps |
| – Ingress Protection Rating: IP67 |
| – Max. Ambient Temp: +158°F |
| – Min. Ambient Temp: -40°F |
| – Dimensions: 11.25″L x 4″W x 6.75″H |
| – Net Weight: 10.40 lbs. |
| 24-VOLT COMPRESSOR | |||||
|---|---|---|---|---|---|
| PSI | CFM | A | BAR | LPM | A |
| 0 | 2.20 | 8 | 0 | 62.3 | 8 |
| 10 | 1.98 | 9 | 1.0 | 54.5 | 10 |
| 20 | 1.86 | 11 | 2.0 | 50.6 | 11 |
| 30 | 1.78 | 11 | 3.0 | 47.0 | 11 |
| 40 | 1.69 | 11 | 4.0 | 43.4 | 12 |
| 50 | 1.59 | 12 | 5.0 | 40.6 | 12 |
| 60 | 1.52 | 12 | 6.0 | 37.7 | 12 |
| 70 | 1.45 | 12 | 7.0 | 35.0 | 13 |
| 80 | 1.38 | 12 | 8.0 | 32.0 | 12 |
| 90 | 1.31 | 12 | 9.0 | 28.5 | 12 |
| 100 | 1.24 | 13 | 10.0 | 26.0 | 12 |
| 110 | 1.17 | 13 | |||
| 120 | 1.09 | 12 | |||
| 130 | 1.01 | 12 | |||
| 140 | 0.95 | 12 | |||
| 150 | 0.88 | 12 | |||
* Supply Voltage: 28.0 Volts
FILL RATE
| 24-VOLT COMPRESSOR | |
|---|---|
| 2.5 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 1 min. 45 sec. (± 10 sec.) |
| 85 to 105 PSI | 25 sec. (± 05 sec.) |
| 0 to 145 PSI | 2 min. 40 sec. (± 10 sec.) |
| 110 to 145 PSI | 50 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 3 min. 20 sec. (± 10 sec.) |
| 85 to 105 PSI | 50 sec. (± 05 sec.) |
| 0 to 145 PSI | 5 min. 15 sec. (± 15 sec.) |
| 110 to 145 PSI | 1 min. 45 sec. (± 10 sec.) |
